Piping and Structure

Features Piping and Structure

This application has 6 programs in 1 application for piping engineering.1.
Standard Steel : This application is dimensions of standard steel such as angle, channel, beam, tee tube and pipe.
All steels are in standard of ASTM, BS and JIS.
You can select steel by type and steel size.
It will show dimensions of height, width, thickness, corner radius, Moment of inertia, Radius of gyration and Modulus of Section.2.

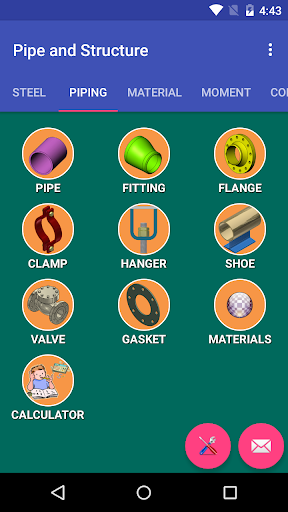

PIPING: This application is dimension of piping accessories.
It has many accessories in the app such as pipe size, pipe clamp, fitting, flange and pipe hanger.
This app have both metric and us unit.
It will auto change unit when user select pipe standard NPS (in) or DN (mm).3.
FASTENER: This application is dimension of fastener.
It has many types of bolt, nut, pin and washer.
4.
MATERIAL: The application is database program for standard ASTM materials such as AISI 309 Stainless Steel.
This program help you for kept properties of material and you can add new material, edit material and delete material as your need.
The properties had mechanical, thermal and strength of materials.5.
MOMENT & DEFLECTION: This application is calculation program for strength of beam.6.
CONVERTER: This application is a simple unit converter.
